With the rapid advancement of industrial automation and high-end equipment manufacturing, the demands for bearing precision, rigidity, and load-carrying capacity have become increasingly stringent. Thanks to their compact structure, heavy load capability, and high rotational accuracy, crossed roller bearings have become critical components in numerous precision devices.
Compared with conventional bearings, crossed roller bearings can simultaneously withstand loads from multiple directions within a limited installation space. Consequently, they are widely used in robotics, CNC equipment, and precision instruments.
What is a Crossed Roller Bearing?
The rolling elements of a crossed roller bearing are typically cylindrical or tapered rollers, which are arranged in a 90° crossed pattern within V-shaped raceways. To prevent direct contact between the rollers, spacers or separators are placed between them, ensuring smooth and stable operation.
This unique structural design enables a single bearing to simultaneously withstand:
Radial loads
Axial loads
Overturning moments (tilting moments)
Thus, it provides comprehensive support for multi-directional loads.
Main Characteristics of Crossed Roller Bearings
- High Rotational Accuracy
By employing a vertically crossed roller arrangement, the forces exerted on the rolling elements are distributed more uniformly. Meanwhile, the spacers effectively prevent roller skewing and mutual friction, reducing running resistance. This ensures high rotational precision and stability, making them exceptionally suitable for high-precision positioning and precision rotary equipment.
- Easier Installation
Some crossed roller bearings feature a split-ring design. Once the rollers and spacers are assembled, the inner or outer rings can be pre-fixed into an integrated unit, significantly simplifying the installation process. Compared to traditional precision bearings, crossed roller bearings offer higher assembly efficiency, smaller installation errors, and easier maintenance, effectively boosting overall equipment manufacturing efficiency.
- Exceptional Load-Carrying Capacity
Since the rollers are arranged at 90° crossed angles within the V-shaped raceways, every rolling element participates in load sharing. This allows crossed roller bearings to handle not only substantial radial loads but also significant axial loads and overturning moments. This is a crucial advantage for equipment that demands high-rigidity support.
- Space-Saving Design
Crossed roller bearings feature a compact design with optimized inner and outer ring dimensions, achieving high load capacities within minimized installation spaces. Super-thin types, in particular, deliver a compact, lightweight, and high-rigidity structure, making them ideal for space-constrained precision machinery.
Application Fields of Crossed Roller Bearings
Leveraging their high precision and high rigidity, crossed roller bearings are extensively applied in the following industries:
Industrial Robots: Robot joints, rotary mechanisms, and automated material handling equipment.
CNC Machine Tools: CNC rotary tables, indexing plates, and rotary axes of machining centers.
Precision Equipment: Precision rotary tables, measuring instruments, and optical inspection equipment.
Medical Equipment: CT scanners, medical rotary platforms, and imaging inspection devices.
Semiconductor Industry: Wafer processing equipment, IC manufacturing machinery, and precision positioning systems.

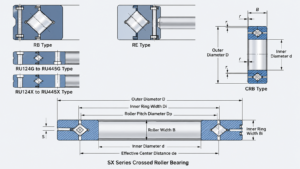

Common Structural Types of Crossed Roller Bearings
Depending on the structural design, common crossed roller bearing model series include:
| Model Series | Structural Characteristics |
| RB Series | Integrated inner ring, split outer ring |
| RE Series | Integrated outer ring, split inner ring |
| RU Series | Integrated inner & outer rings with mounting holes |
| CRB Series | Super-thin integrated structure |
| SX Series | Super-thin and lightweight structure |
Different series are tailored to distinct installation methods and equipment structure requirements. Users should comprehensively evaluate load, space, and installation conditions during the selection process.
As a professional bearing supplier, Wuxi USU Bearing continuously provides customers with a comprehensive range of crossed roller bearing products and technical support services. If you need assistance with selection, installation, or application solutions for crossed roller bearings, please feel free to contact us for further discussion.
