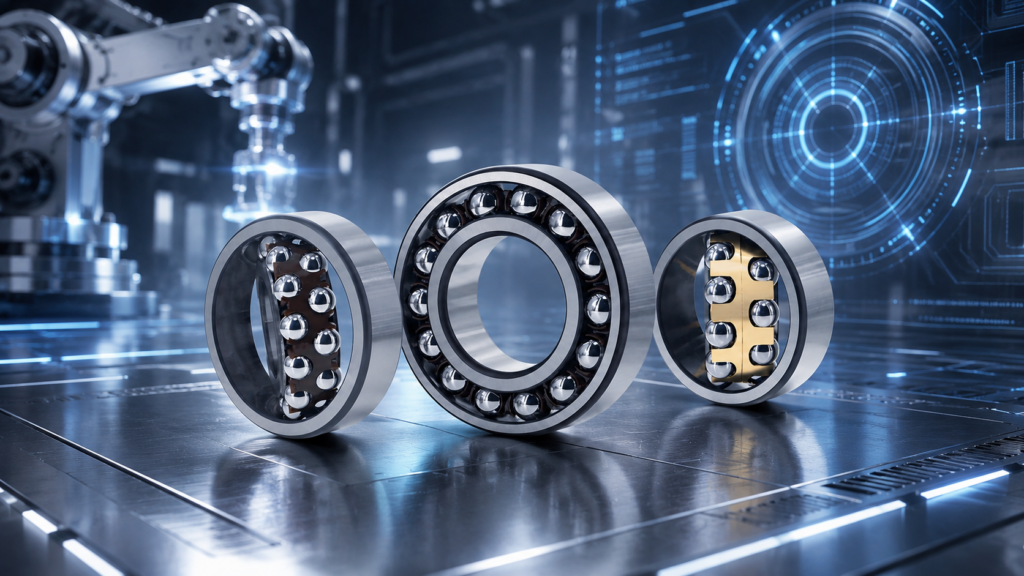

As core fundamental components for precision mechanical transmission, self-aligning ball bearings stand out for their unique self-aligning capability, making them the ideal matching parts for mechanical equipment operating under complex working conditions and difficult centering installation scenarios. With years of in-depth experience in the bearing industry, USU Bearings manufactures a full range of high-quality self-aligning ball bearings suitable for diverse application scenarios.
This article comprehensively introduces self-aligning ball bearings in terms of structure, cage types, internal clearance, performance and practical applications, helping you achieve accurate model selection and efficient application.
1.What Are Self-Aligning Ball Bearings?
Self-aligning ball bearings are universal precision bearings with automatic misalignment compensation function. They can effectively offset shaft eccentricity, bending deflection, installation deviation and base deformation, thus eliminating abnormal noise, jamming and premature wear during equipment operation. Widely used in various mechanical devices with low coaxiality requirements and complex working environments, they are indispensable basic transmission parts in industrial production.
2.Core Structure & Self-Aligning Working Principle
The excellent self-aligning performance derives from its distinctive structural design. It mainly consists of four key parts: inner ring, outer ring, steel balls and cages, which work coordinately to realize stable self-alignment.
Inner Ring: Double Raceway Design for Even Force Distribution
The inner ring is equipped with two curved raceways. Compared with single-raceway structures, it bears loads more evenly, capable of undertaking radial loads and slight bidirectional axial loads to meet multi-directional force demands.
Outer Ring: Arc Raceway — Core for Self-Alignment
The outer ring adopts an integral spherical arc raceway, which is the key structure to realize automatic self-alignment. It provides sufficient space for free swing of steel balls and cages to ensure smooth self-adjustment.
Integrated Steel Balls & Cages for Flexible Swing
Steel balls, cages and inner rings form an integrated assembly that can swing freely and align automatically inside the outer ring arc raceway. When the shaft tilts, shifts or deforms, the bearing can adjust its angle independently to maintain smooth rotation, realizing reliable self-alignment, centering and anti-jamming effects.
3.Common Types of Self-Aligning Ball Bearing Cages
Various standard cage materials are available for selection according to equipment rotating speed, operating temperature and working environment, fully meeting diverse practical usage demands.
Stamped Steel Cage
Economical, durable, lightweight and low-friction with reasonable production cost. It is the most widely used cage type, perfect for medium and high-speed general equipment under conventional working conditions.
Nylon Engineering Plastic Cage
Featured with low noise, excellent self-lubricating property and great wear resistance. It is applicable to household appliances, fans, light industrial machinery and other devices requiring strict noise control.
Solid Brass Cage
High temperature resistance, high structural strength and strong deformation resistance. It suits high-speed, high-temperature, heavy-load and long-term continuous operating conditions, ideal for harsh working scenarios such as mining and heavy machinery.
4.Internal Clearance Standards for Self-Aligning Ball Bearings
The radial internal clearance of self-aligning ball bearings complies with unified international standards. Universal coding rules are adopted worldwide, saving conversion trouble during model selection, replacement and foreign trade matching and greatly improving compatibility efficiency.
Common Clearance Codes (Ascending Order)
C1, C2, CN, C3, C4, C5, C6, C7, C8, C9
Applicable Scenarios
C1: Minimum clearance, for high-precision, low-vibration precision equipment with strict clearance requirements
C2: Small clearance, for standard-precision and low-speed equipment
CN: Standard normal clearance (unmarked by default), suitable for most general working conditions
C3 / C4: Large clearance, applied to high-temperature, high-speed environments with severe shaft thermal expansion to prevent bearing seizure
C5~C9: Extra-large clearance, designed for heavy-duty equipment under harsh conditions with intense vibration and large shaft deformation
5.Core Performance Advantages
Powerful Automatic Misalignment Compensation & High Installation Tolerance
It automatically compensates for shaft bending, installation errors and frame deformation, avoiding shaft binding, overheating and abnormal noise. It lowers installation precision requirements and cuts assembly difficulty as well as maintenance costs.
Dual-Raceway Load Bearing for Stable Operation
The double-row steel ball and double-raceway structure delivers strong radial load capacity and bears bidirectional axial loads, ensuring stable running under multi-directional force conditions.
Smooth Operation, Low Noise & Long Service Life
High assembly precision and low friction coefficient reduce vibration and running noise, supporting long-term continuous equipment operation. Premium raw materials and sophisticated processing technology further extend overall service life.
Complete Specifications & Strong Interchangeability
Manufactured in accordance with national standard universal dimensions with global interchangeability. It facilitates export business and equipment maintenance replacement, meeting matching demands of equipment from different countries and brands.
6.Main Application Industries & Equipment
Thanks to outstanding self-aligning performance and wide adaptability, self-aligning ball bearings are extensively applied in various industrial fields, especially suitable for machinery with easily bent shafts, difficult centering installation and strong operating vibration:
Woodworking Machinery: Wood milling machines, panel saws, sanding machines, etc.
Textile Machinery: Spinning machines, weaving looms and related textile production equipment
Agricultural Machinery: Tractors, harvesters, seeders and farm operating devices
General Machinery: Ventilation fans, speed reducers, conveying equipment, general-purpose motors, etc.
Other Fields: Light industrial equipment, mining auxiliary machinery, printing machinery and more
7.Core Strengths of USU Self-Aligning Ball Bearings
Specializing in the production of full-series self-aligning ball bearings, USU Bearings strictly follows national and international manufacturing standards. After years of industry accumulation, we have become a preferred cooperative supplier for global clients by virtue of superior products and professional services.
Diverse Cage Options: Nylon cages in stock for higher rotating speed performance
Full-range Clearance Support: Customizable clearance from C1 to C9 to fit all working conditions
High Precision Grade: P5-level dimensional precision equipped with G5-grade steel balls, matching various precision equipment
Reliable Quality: Adopted premium raw materials with strict roundness tolerance control, featuring excellent wear resistance, high temperature resistance and long service life
Foreign Trade Oriented: Compliant with international export packaging standards and European & American general specifications for hassle-free overseas delivery
Feel free to contact Wuxi USU Bearings if you have demands for model selection, bulk procurement or customized production of self-aligning ball bearings. Our professional technical team will provide you with one-on-one selection guidance and targeted bearing application solutions to boost efficient operation of your enterprise!
